LDAP Query Component

LDAP Query

This component connects to an LDAP server to retrieve data and load it into a table. This stages the data, so the table is reloaded each time. You may then use transformations to enrich and manage the data in permanent tables.

The component offers both a Basic and Advanced mode (see below) for generating the LDAP query.

Warning: This component is potentially destructive. If the target table undergoes a change in structure, it will be recreated. Otherwise, the target table is truncated. Setting the Load Option 'Recreate Target Table' to 'Off' will prevent both recreation and truncation. Do not modify the target table structure manually.

Properties

Property Setting Description
Name Text The descriptive name for the component.
Username Text A valid LDAP username to use to bind to the server. (This is often of the form username@REALM.)
Password Text A valid password for the Bind Username above. Users have the option to store their password inside the component but we highly recommend using the Password Manager option.
Server Text The server IP or DNS address.
Basedn Text Selects the part of the LDAP Tree that should be treated as the root.
The notation is similar to LDIF entries, for example "cn=Users,dc=myorrgname,dc=com".
Data Source Choice We provide a handful of common LDAP schemas to query against, e.g. Person and Group. For more complicated requirements, please contact Matillion Support.
Data Selection Choice Select one or more columns to return from the query.
Data Source Filter Input Column The available input columns vary depending upon the Data Source.
Qualifier Is: Compares the column to the value using the comparator.
Not: Reverses the effect of the comparison, so "equals" becomes "not equals", "less than" becomes "greater than or equal to", etc.
Comparator Choose a method of comparing the column to the value. Possible comparators include: 'Equal To', 'Greater than', 'Less than', 'Greater than or equal to', 'Less than or equal to', 'Like', 'Null'.
'Equal To' can match exact strings and numeric values while other comparators such as 'Greater than' will work only with numerics. The 'Like' operator allows the wildcard character (%) to be used at the start and end of a string value to match a column. The Null operator matches only Null values, ignoring whatever the value is set to.
Not all data sources support all comparators, thus it is likely only a subset of the above comparators will be available to choose from.
Value The value to be compared.
SQL Query Text This is an SQL-like query, written according to the LDAP Data Model. (Property only available in 'Advanced' Mode)
Limit Number Provides an upper limit on the number of rows retrieved from the LDAP server. Blank means fetch all records.
Connection Options Parameter A JDBC parameter supported by the Database Driver. The available parameters are determined automatically from the driver, and may change from version to version.
They are usually not required as sensible defaults are assumed.
Value A value for the given Parameter. The parameters and allowed values for the LDAP provider are explained in the Data Model.
Storage Account Select (Azure Only) Select a Storage Account with your desired Blob Container to be used for staging the data.
Blob Container Select (Azure Only) Select a Blob Container to be used for staging the data.
Staging Select (AWS Only) Snowflake Managed: Allow Matillion ETL to create and use a temporary internal stage on Snowflake for staging the data. This stage, along with the staged data, will cease to exist after loading is complete.
Existing Amazon S3 Location: Selecting this will avail the user of properties to specify a custom staging area on S3.
S3 Staging Area Text (AWS Only) The name of an S3 bucket for temporary storage. Ensure your access credentials have S3 access and permission to write to the bucket. See this document for details on setting up access. The temporary objects created in this bucket will be removed again after the load completes, they are not kept.
This property is available when using an Existing Amazon S3 Location for Staging.
Warehouse Select Choose a Snowflake warehouse that will run the load.
Database Select Choose a database to create the new table in.
Type Select Choose between using a standard table or an external table.
Standard: The data will be staged on an S3 bucket before being loaded into a table.
External: The data will be put into an S3 Bucket and referenced by an external table.
Schema Select Select the table schema. The special value, [Environment Default] will use the schema defined in the environment. For more information on using multiple schemas, see this article.
Note: An external schema is required if the 'Type' property is set to 'External'.
Target Table Text Provide a new table name.
Warning: This table will be recreated and will drop any existing table of the same name.
Location Text/Select When using an 'External' type table, Provide an S3 Bucket path that will be used to store the data. Once on an S3 bucket, the data can be referenced by the external table.
Distribution Style Select Auto: (Default) Allow Redshift to manage your distribution style.
Even: Distributes rows around the Redshift cluster evenly.
All: Copy rows to all nodes in the Redshift cluster.
Key: Distribute rows around the Redshift cluster according to the value of a key column.
Table distribution is critical to good performance. See the Amazon Redshift documentation for more information.
Table Distribution Key Select This is only displayed if the Table Distribution Style is set to Key. It is the column used to determine which cluster node the row is stored on.
Table Sort Key Select This is optional, and specifies the columns from the input that should be set as the table's sort-key.
Sort-keys are critical to good performance - see the Amazon Redshift documentation for more information.
Sort Key Options Select Decide whether the sort key is of a compound or interleaved variety - see the Amazon Redshift documentation for more information.
Project Text The target BigQuery project to load data into.
Dataset Text The target BigQuery dataset to load data into.
Cloud Storage Staging Area Text The URL and path of the target Google Storage bucket to be used for staging the queried data.
Encryption Select (AWS Only) Decide on how the files are encrypted inside the S3 Bucket.This property is available when using an Existing Amazon S3 Location for Staging.
None: No encryption.
SSE KMS: Encrypt the data according to a key stored on KMS.
SSE S3: Encrypt the data according to a key stored on an S3 bucket
KMS Key ID Select (AWS Only) The ID of the KMS encryption key you have chosen to use in the 'Encryption' property.
Load Options Multiple Selection Comp Update: Apply automatic compression to the target table (if ON). Default is ON.
Stat Update: Automatically update statistics when filling a table (if ON). Default is ON. In this case, it is updating the statistics of the target table.
Clean S3 Objects: Automatically remove UUID-based objects on the S3 Bucket (if ON). Default is ON. Effectively decides whether to keep the staged data in the S3 Bucket or not.
String Null is Null: Converts any strings equal to "null" into a null value. This is case sensitive and only works with entirely lower-case strings. Default is ON.
Recreate Target Table:Choose whether the component recreates its target table before the data load. If OFF, the existing table will be used. Default is ON.
Load Options Multiple Select Clean Cloud Storage Files: (If On) Destroy staged files on Cloud Storage after loading data. Default is On.
Cloud Storage File Prefix: Give staged file names a prefix of your choice. Default is empty (no prefix).
Auto Debug Select Choose whether to automatically log debug information about your load. These logs can be found in the Task History and should be included in support requests concerning the component. Turning this on will override any debugging Connection Options.
Debug Level Select The level of verbosity with which your debug information is logged. Levels above 1 can log huge amounts of data and result in slower execution.
1: Will log the query, the number of rows returned by it, the start of execution and the time taken, and any errors.
2: Will log everything included in Level 1, cache queries, and additional information about the request, if applicable.
3: Will additionally log the body of the request and the response.
4: Will additionally log transport-level communication with the data source. This includes SSL negotiation.
5: Will additionally log communication with the data source and additional details that may be helpful in troubleshooting problems. This includes interface commands.

Variable Exports

This component makes the following values available to export into variables:

Source Description
Time Taken To Stage The amount of time (in seconds) taken to fetch the data from the data source and upload it to storage.
Time Taken To Load The amount of time (in seconds) taken to execute the COPY statement to load the data into the target table from storage.

Strategy

Connect to (bind to) the LDAP Server and issue the one or more searches. Stream the results into objects on S3, recreate or truncate the target table as necessary and then use a COPY command to load the S3 objects into the table. Finally, clean up the temporary S3 objects.


Example

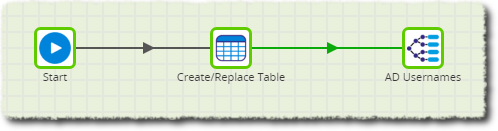

In this example, the LDAP Query component is used to load user data from an LDAP server. A table is created using a Create/Replace Table component and linked to the LDAP Query component. Inside the LDAP Query component, the Base DN (the point from which the server will begin the search for users) is set to 'dc=matillion,dc=com' and relevant credentials are entered to access the server.

Since we are looking for user data, the data source is set to 'Person'. All columns are selected in the 'Data Selection' property and no filter is specified. As with all Query components, we must specify a table for the data to be loaded into.

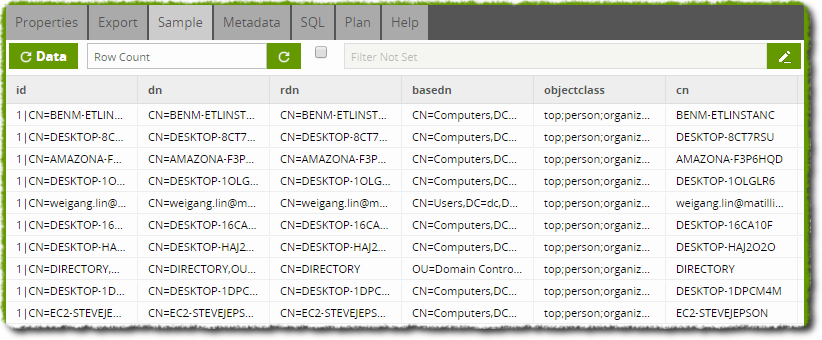

This job can now be run and user data will be found and loaded into the table. Switching to a Transformation job and using a Table Input component to bring the table into Matillion ETL, we can use the Sample tab to show a sample of the loaded data.
